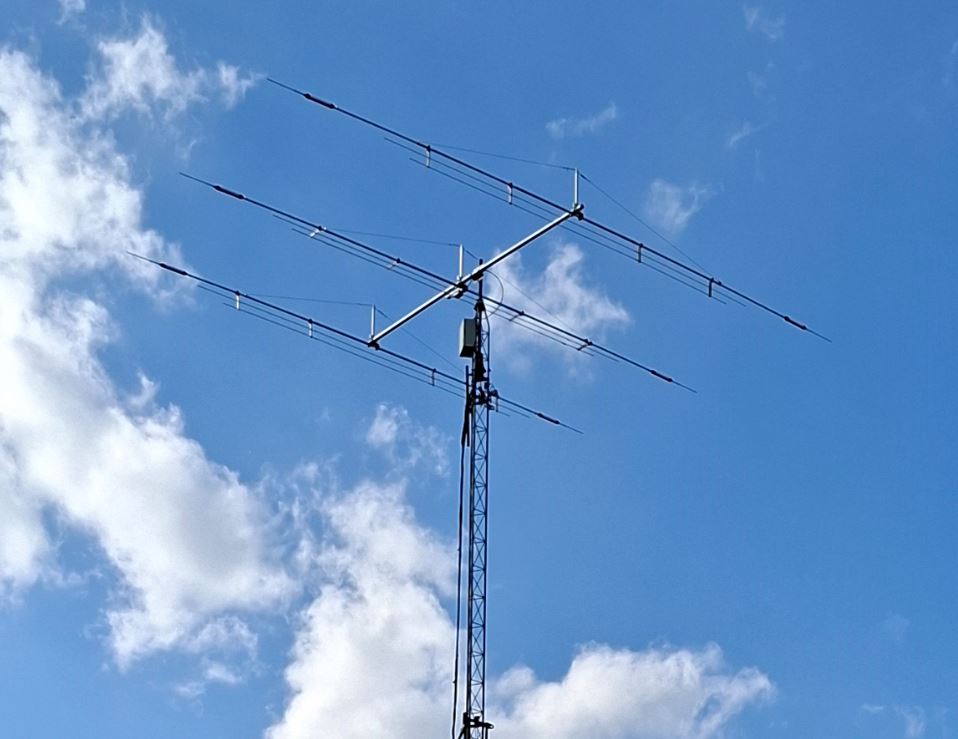

Antenna BEAM 3 elements 5 bands

Bands: 20/ 17/ 15/ 12/ 10 [ m ]
Active elements: 3/ 3/ 3/ 3/ 3 [ pcs ]
Gain (dBd): 7,3/ 7,2/ 8,5/ 9,0/ 9,0 [ dBd ]
F/B (dB): 21/ 19/ 23/ 24/ 24 [ dB ]
Bandwidth at VSWR 1,5:1
– 20 m: 250 kHz
– 17 m: 100 kHz
– 15 m: 300 kHz
– 12 m: 100 kHz
– 10 m: 600 kHz
Max. Power Input: 2000 [ W ]
Digital: 1000 [ W ]
Feedlines: 1 Coax 50 ohm
Band change: automatic
Boom length: 4,2 [ m ] / 13,9 [ ft ]
Max. Element Length: 9,4 [ m ] / 30,1 [ ft ]
Turning Radius: 5 [ m ] / 30.1 [ ft ]
Maximum Wind Speed: 135 [ km/h ] / 84 [ mph ]
Wind Surface Area:
Minimum antenna height (in open space)
above the ground:
7 [ m ] / 22 [ ft ]
Weight: 21 [ kg ] / 46 [ lbs ]
